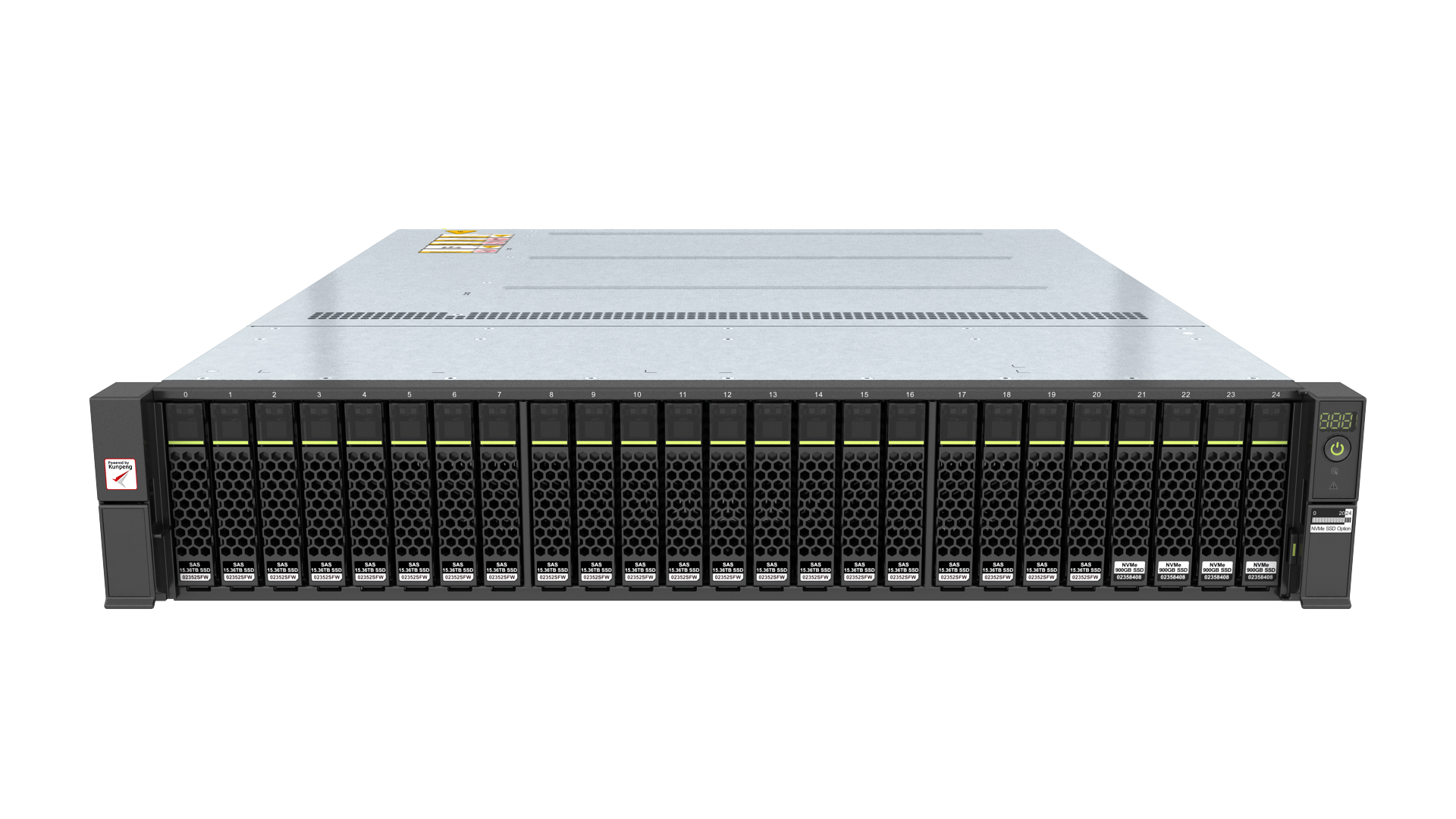

    Powerleader Hybrid Flash Storage PLStor S Series

    Powerleader PLStor S5200/5800/8100/8200/8300/8500/8600/8800/9800/18500/18800 intelligent hybrid flash storage system (hereinafter referred to as PLStor mid-range storage) is a storage product for enterprise-level applications. With cloud-oriented storage operating system, powerful new-generation hardware platform and intelligent management software, PLStor mid-range storage has reached the industry-leading level in function, efficiency, reliability and intelligent operation and maintenance, which can not only meet the requirements of medium and large database OLTP /OLAP, file sharing and other applications for data storage, and to meet the business evolution of enterprise services to the cloud, it is widely used in finance, government, operators, manufacturing, energy, education, medical and other industries. PLStor mid-range storage provides efficient, flexible, and rich backup and disaster recovery solutions, effectively ensuring user business continuity and data security, and providing users with excellent storage services.

    Functional features
    deep fusion

    Equipped with the PLStor OS storage operating system,PLStor mid-range storage furtherleverages the advantages of integration, providing users with a unifiedresource pool that can be integrated and flexibly allocated, allowing user datato flow freely and helping enterprise IT evolve to a cloud architecture.

    Convergence of flash memory: PLStor mid-range storage has the ability to integrate thedual advantages of SSD storage and HDD storage. It can give full play to theperformance of different types of media in mixed scenarios, and provide variousSSD acceleration methods for blocks and files (SSD cache, intelligentclassification ) to achieve the desired gains in performance and capacity. PLStor mid-range storage supportsinterconnection and interoperability with different types, grades, andgenerations of flash memory from Baode; realizes multi-layered flash memoryintegration from data, management, and operation and maintenance.

    Integration of SAN and NAS: PLStor mid-range storage can provide two services,SAN and NAS, to meet the needs of flexible business development, improvestorage resource utilization, and effectively reduce TCO. The SAN service andNAS service are directly provided by the underlying storage resource pool,which shortens the access path of storage resources, thus ensuring theindustry-leading performance and functions of the two services (SAN and NAS).

    Integration of storage resource pools:Through the built-in heterogeneous virtualization function, PLStor mid-range storage canefficiently take over the storage arrays of other mainstream manufacturers andintegrate into a unified resource pool, eliminating data islands, unifiedmanagement of resources, automation & service orchestration; , it can alsoachieve zero interruption of third-party device migration, and the migrationoperation is completed automatically by tooling, reducing the time consumptionby an average of 60%.

    Integration of multiple data centers: PLStor mid-range storage providesgateway-free SAN and NAS integrated active- active solutions to achievebusiness continuity across data centers; supports smooth upgrade from active-active data centers to 3DCs, providing business continuity guarantees in twolocations and three centers ; It can realize 64:1 multi-level DC, providingcentralized disaster recovery and guarantee for data.

    Integration of high-end and low-end:no needfor third-party systems, PLStor mid-range storage supports free flow of databetween PLStor mid-range storage and Boyd PLStor intelligent hybrid flashstorage series storage, and supports no hard disk migration, business interruption,and data destruction. The original LUN space online is taken over by a highermodel controller of the same series to improve performance.

    Cloud integration: Provide storage hybridcloud solutions , realize data disaster recovery between private cloud andpublic cloud through cloud on-cloud resource coordination and data flow, andhelp enterprise storage services to smoothly transform to cloud.


    Excellent performance meet the elastic growth needs of enterprise business

    Flash-oriented storage architecture: PLStor mid-range storage adoptsa flash-oriented system architecture. Based on flash fusion technology,flash-based optimization designs such as intelligent CPU multi-coreoptimization, resource scheduling algorithm, Cache adaptive algorithm, and IOintelligent scheduling ensure that the storage system can handle a large numberof services. When accessing, it can still provide a stable I/O fast response ofless than 0.5 ms, ensuring the excellent performance experience of users' keyapplications.

    Matching the leading specifications of flash memorydesign: the mid-range storage adoptsa multi-core and multi-thread high-performance processing platform, and thecontrollers use RDMA technology for high-speed interconnection, supporting32Gbps FC/100Gbps Ethernet and other host interfaces; the back end adopts NVMeover Fabric (100Gbps)/SAS 3.0 (12Gbps) high-speed interface to meet the needsof high-performance, high-bandwidth application scenarios.

    Flexible Scalability: PLStor mid-range storage can linearly expand systemresources, and can smoothly expand to a maximum of 16 controllers and 12 TB ofcache, meeting users' data requirements for rapid business growth in the futureand helping users increase revenue. At the same time, multiple controllers canbe used to accelerate the same host business concurrently, eliminating theperformance bottleneck of a single controller and doubling the performance.

    Comprehensive efficiency improvement solutions: PLStor mid-range storage providesSmart series of value-added functions, including SSD caching, dataclassification (including block and file level), service quality control, cachepartitioning, automatic thin provisioning, file quotas and other variousefficiency improvement solutions. Application Efficiency is greatly improved.


    Stable and reliable achieve 99.9999% highavailability from product to solution

    Reliable hardware design: controller, south bridge,network card, and SAS controller are multi-module integrated to reduce failurepoints, and ensure the reliability of the core processing platform throughmodule -level error recovery, ECC and other RAS technologies; SSD hard drivesare combined with wear leveling and Baode The patented anti-wear levelingalgorithm improves the reliability of SSD disks; the intelligent BMC managementmodule realizes comprehensive management and control of processing platform,memory and other components, and the fault recovery time is shortened from 2hours to 10 minutes.

    Multi-controller load balancing: PLStor mid-range storage providesload balancing technology between multiple controllers to eliminate singlepoints of failure, achieve high system availability, and protect businessstability online.

    Unique rapid data recovery technology: Usinginnovative block-level virtualization technology, 1TB data reconstruction timeis reduced from 10 hours to 30 minutes. Compared with traditional storage, therisk of data failure caused by hard disk failure is reduced by 95%.

    Rich data protection solutions: Hyperseries data protection software includes data protection technologies such assnapshot, clone, integrated backup, remote replication, active-active, 3DC,etc. 99.9999% availability to ensure user business continuity and dataavailability.

    LeadingSAN and NAS integrated active-active protection: PLStor mid-range storage supports SAN and NASintegrated active-active, ensuring high availability of database and fileservices at the same time. With HyperMetro AA active-active, load-balancingactive-active mirroring and non-disruptive cross-site takeover can beimplemented between storage systems, ensuring zero loss of user key applicationdata and zero business interruption, so that users' core application systemsare not troubled by downtime . At the same time, the gateway-free design caneffectively reduce the user's acquisition cost and deployment complexity. Asingle set of equipment can be smoothly upgraded to active-active, and can befurther extended to two -site three-center solutions.


    Intelligent management

    Intelligent operation and maintenance management:intelligent remote monitoring, 7*24 active monitoring and remote maintenance inthe storage cloud, automatic inspection, minute-level fault detection,automatic fault reporting and order creation; intelligent fault diagnosis,end-to-end path visualization and performance from host to storage Correlationanalysis to achieve automatic fault location.

    Intelligent prediction andevaluation: intelligent risk prediction, based on multi-dimensionalanalysis and prediction of hard disk/configuration/capacity/performance, etc.,to identify system risks in advance; intelligent business planning, analysis ofhost business load characteristics and system capacity prediction, plan systemperformance and capacity requirements in advance .

    Technical specifications

    model

    PLStor8100

    PLStor8200

    PLStor8300

    PLStor8500

    PLStor8600

    PLStor8800

    Control Frame Properties


    storage processing platform

    multi-core multi-processing platform

    Maximum system cache

    256GB

    512GB

    2TB

    4TB

    8TB

    12TB

    Maximum number of controllers

    8

    16

    Supported storage protocols

    FC , iSCSI , NFS , CIFS , HTTP , FTP

    front end channel port type

    8/16/32Gbps FC, 1/10/25Gbps Ethernet

    8/16/32Gbps FC, 1/10/25/40/100Gbps Ethernet

    back-end channel port type

    SAS3.0

    NVMe over Fabric/SAS 3.0

    Maximum number of hot-swappable I/O modules (per controller)

    2

    3

    6

    Maximum front-end host interfaces (per controller)

    8Gb FC: 8

    16Gb FC: 8

    32G FC: 8

    GE: 12

    10Gb Eth: 10 10GE (electrical ports): 8 25Gb Eth: 8

    8Gb FC: 8

    16Gb FC: 8

    32G FC: 8

    GE: 12

    10Gb Eth: 10

    10GE (electrical port): 8

    25Gb Eth: 8

    40Gb Eth: 4

    100Gb Eth: 4

    8Gb FC: 12

    16Gb FC: 12

    32G FC: 12

    GE: 16

    10Gb Eth: 16

    10GE (electrical port): 12

    25Gb Eth: 12

    40Gb Eth: 6

    100Gb Eth: 6

    8Gb FC: 24

    16Gb FC: 24

    32G FC: 24

    GE: 24

    10Gb Eth: 24

    25Gb Eth: 24

    40Gb Eth: 12

    100Gb Eth: 12

    The maximum number of disks in the whole machine

    500

    1000

    1200

    1600

    2000

    2400

    hard drive type

    SSD, SAS, NL SAS

    NVMe SSD, SAS SSD, SAS, NL SAS

    RAID support

    0,1,5,6,10,50 etc.

    Key Software Features


    data protection software

    HyperSnap             HyperClone

    HyperCopy             HyperMirror

    HyperMetro            HyperReplication

    HyperLock             HyperVault

    Critical business assurance

    SmartQoS

    SmartPartition

    SmartCache

    Resource Efficiency Improvement

    SmartMigration

    SmartVirtualization

    SmartQuota

    Smart Compression

    SmartThin        SmartTier

    SmartMotion     SmartErase

    storage management software

    UltraPath         BCManager

    DeviceManager

    eSight

    eService

    Virtualization feature support

    Heterogeneous virtualization

    Integrate equipment storage resources of mainstream manufacturers, and uniformly manage and allocate storage resources flexibly

    block-level virtualization

    Balanced data distribution, fast recovery from failures

    physical properties


    power supply

    100V ~ 240V AC±10%

    240V DC±2 0%

    200V ~ 240V AC±10%

    240V DC±2 0%

    Dimensions (H×W×D)

    488mm×447mm×86.1mm

    2.5-inch controller frame: 520mm*447mm*86.1mm

    3.5-inch controller frame: 600mm*447mm*86.1mm

    2.5-inch controller frame: 820mm*447mm*86.1mm

    3.5-inch controller frame: 900mm*447mm*86.1mm

    NVMe controller enclosure: 920mm*447mm*86.1mm

    weight

    2.5 inch control frame (long frame): 23.75Kg

    3.5 inch control frame (long frame): 24.1Kg

    2.5-inch control frame (short frame): 16.4Kg

    3.5-inch control frame (short frame): 16.3Kg

    2.5-inch control frame: 23.75Kg

    3.5 inch control frame: 24.1Kg

    NVMe controller enclosure: 21.25kg

    2.5 inch control frame: 38.05Kg

    3.5 inch control frame: 38.5Kg

    NVMe controller box: 40.65Kg

    Working temperature

    When the altitude is -60~+1800m, the ambient temperature is 5°C~40°C; when the altitude is 1800m~3000m, the ambient temperature decreases by 1°C for every 220m increase in altitude.

    Working environment humidity

    10 % to 90 % R.H.



    model

    PLStor5200

    PLStor5800

    PLStor9800

    PLStor18500

    PLStor18800

    Control Frame Properties


    storage processing platform

    multi-core multi-processing platform

    Maximum system cache

    32GB

    128GB

    16TB

    32TB

    32TB

    Maximum number of controllers

    2

    2

    16

    32

    32

    Supported storage protocols

    FC , iSCSI , NFS , CIFS , HTTP , FTP

    front end channel

    port type

    8/16/32Gbps FC , 1/10/25Gbps Ethernet

    8/16/32Gbps FC , 1/10/25/40/100Gbps Ethernet

    back-end channel

    port type

    SAS3.0

    NVMe over Fabric/SAS 3.0

    Maximum number of hot-swappable I/O modules (per controller)

    2

    3

    28

    28

    28

    Maximum front-end host interfaces (per controller)

    8Gb FC: 8

    16Gb FC: 8

    32G FC: 8

    GE: 10

    10Gb Eth: 9

    10GE (electrical port): 8

    25Gb Eth: 8

    GE: 16

    10Gb Eth: 16

    10GE (electrical port): 12

    8Gb FC: 80

    16Gb FC: 80

    32G FC: 80

    GE: 20

    10Gb Eth: 20

    25Gb Eth: 20

    40Gb Eth: 10

    100Gb Eth: 10

    The maximum number of disks in the whole machine

    300

    750

    3200

    6400

    9600

    hard drive type

    SSD , SAS , NL SAS

    NVMe SSD , SAS SSD , SAS , NL SAS

    RAID support

    0,1,5,6,10,50 etc.

    Key Software Features


    data protection software

    HyperSnap                HyperClone

    HyperCopy                HyperMirror

    HyperMetro               HyperReplication

    HyperLock                 HyperVault

    Critical business assurance

    SmartQoS

    SmartPartition

    SmartCache

    Resource Efficiency Improvement

    SmartMigration

    SmartVirtualization

    SmartQuota

    Smart Compression

    SmartThin                SmartTier

    SmartMotion             SmartErase

    storage management software

    UltraPath                 BCManager

    DeviceManager

    eSight

    eService

    Virtualization feature support

    Heterogeneous virtualization

    Integrate equipment storage resources of mainstream manufacturers, and uniformly manage and allocate storage resources flexibly

    block-level virtualization

    Balanced data distribution, fast recovery from failures

    physical properties

    power supply

    100V ~ 240V AC±10%

    200V ~ 240V AC±10%

    240V DC±2 0%

    Dimensions (H×W×D)

    2.5-inch control frame: 410mm*447mm*86.1mm

    3.5-inch control frame: 488mm*447mm*86.1mm

    2.5-inch controller frame: 520mm*447mm*86.1mm

    3.5-inch controller frame: 600mm*447mm*86.1mm

    865mm*447mm*175mm



    weight

    2.5 inch control frame: 16.4Kg

    3.5 inch control frame: 16.3Kg

    2.5-inch control frame: 23.75Kg

    3.5 inch control frame: 24.1Kg

    71.9Kg (dual control)

    88.2Kg (four controls)


    Working temperature

    When the altitude is -60~+1800m, the ambient temperature is 5°C~40°C; when the altitude is 1800m~3000m, the ambient temperature decreases by 1°C for every 220m increase in altitude.

    Working environment humidity

    10 % to 90 % R.H. _
